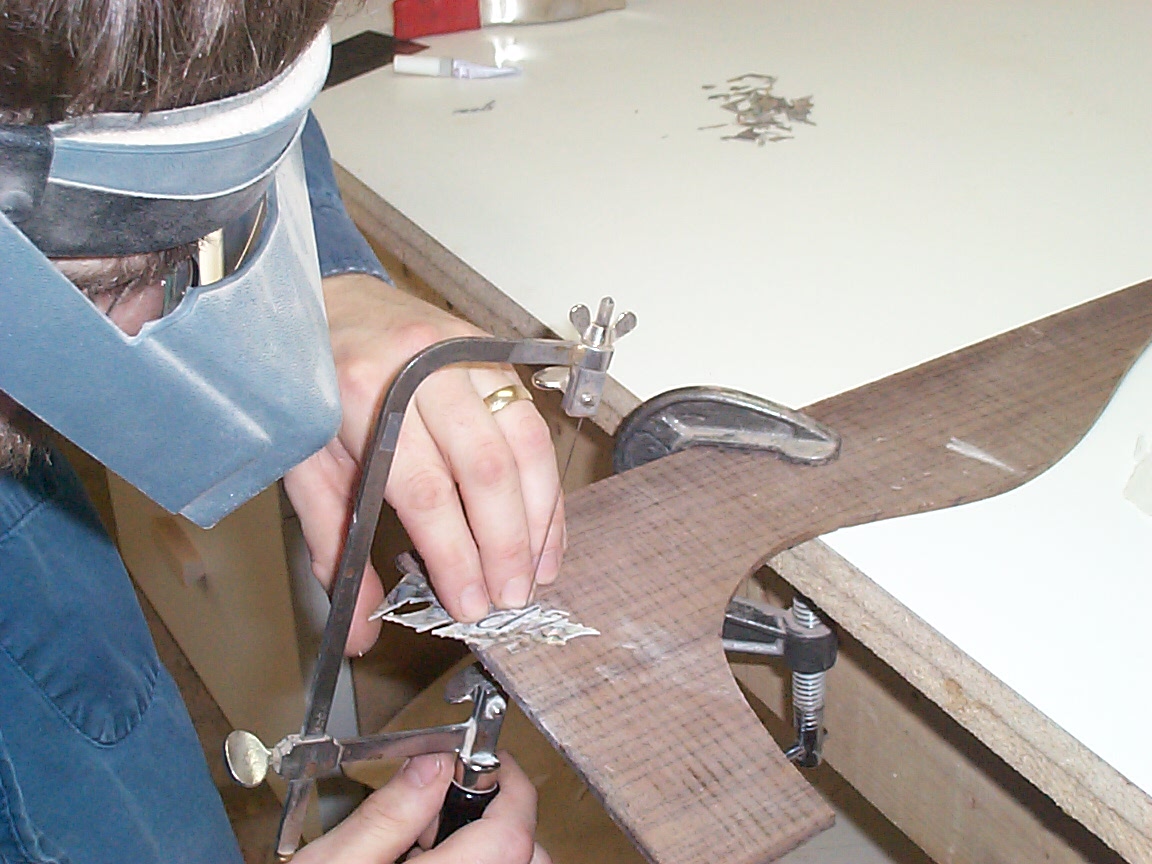

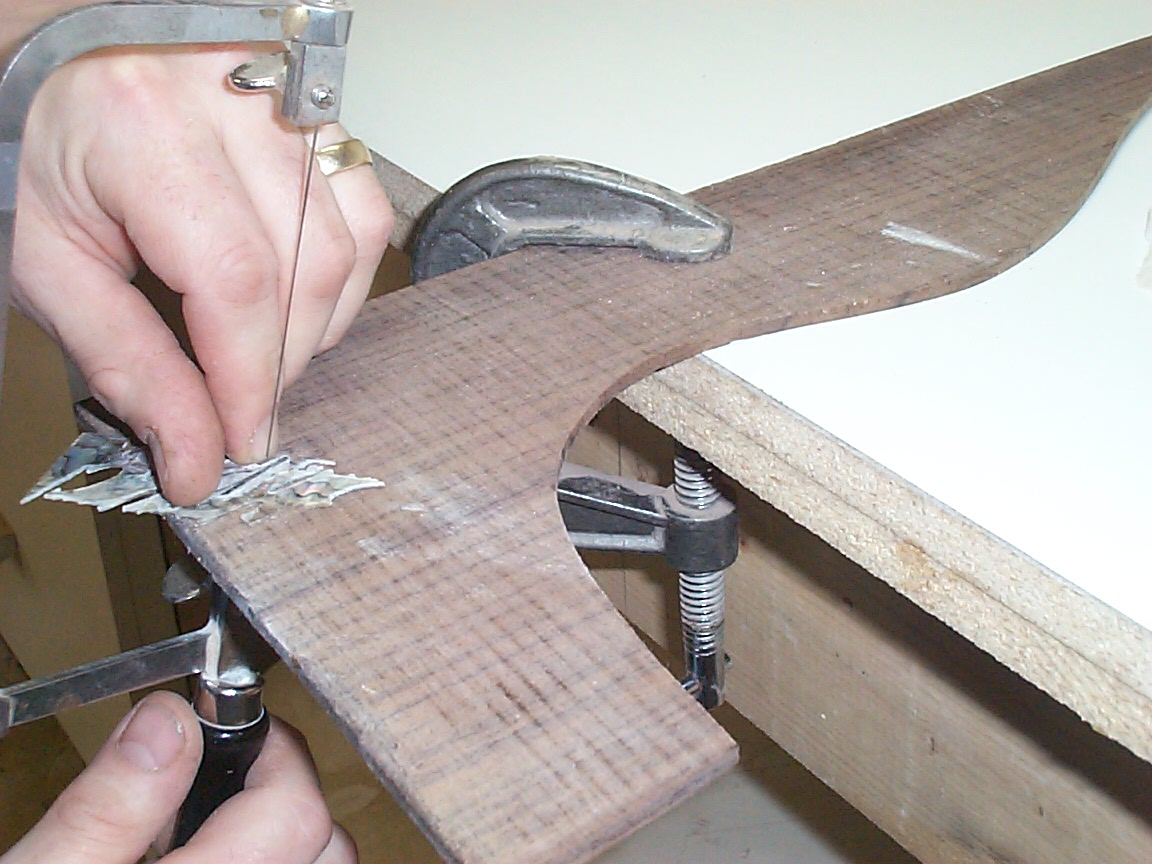

The Abalone Pearl logo gets cut out using a tiny metal cutting blade
held in a jeweler's saw frame. |
I have good eyes, but the close work necessitates the use of a magnifier
to help along! |

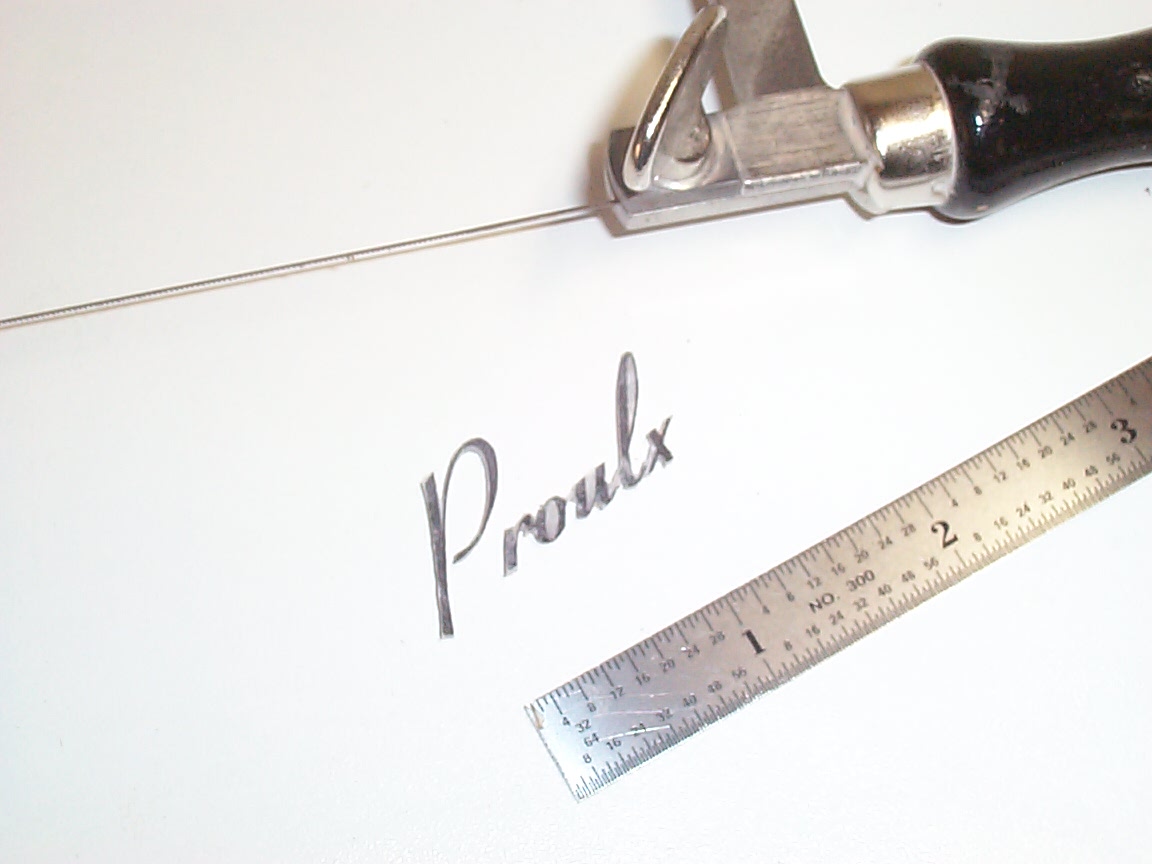

Kinda small, ain't it? |
|
All cut! |

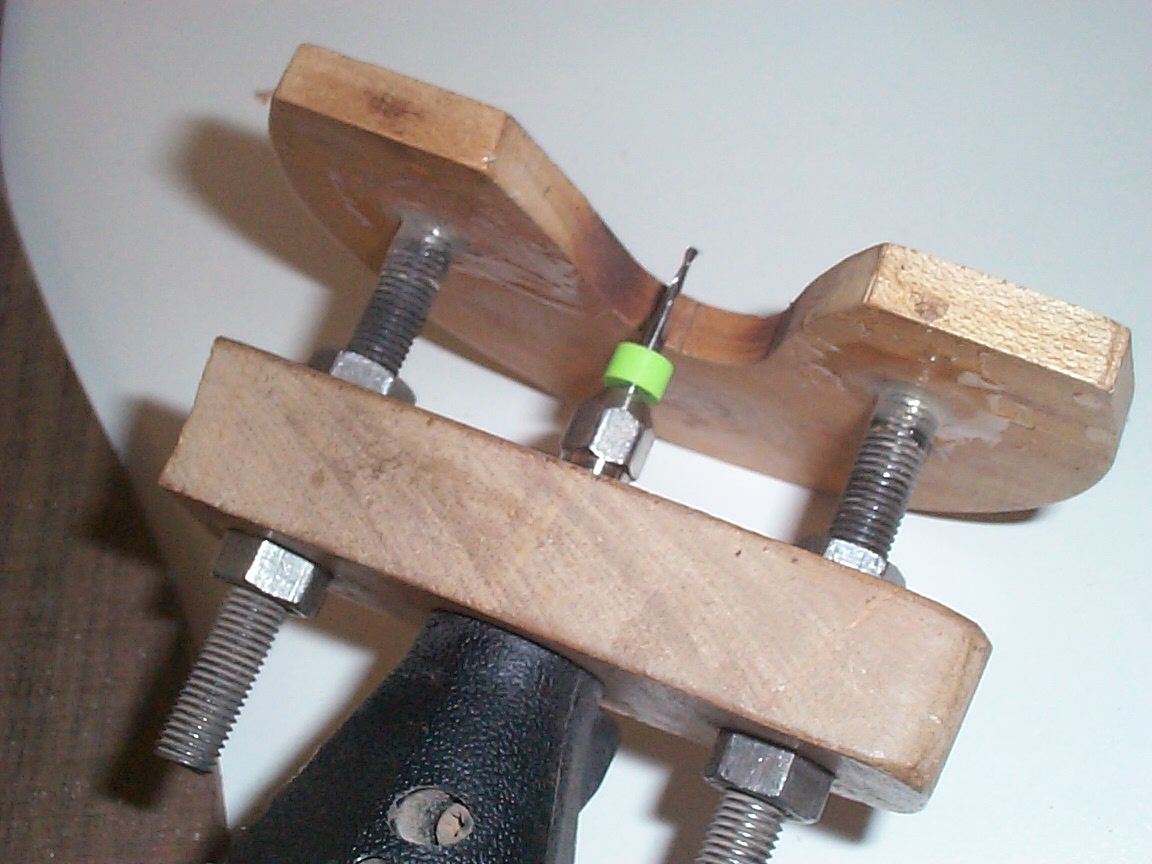

This home made router base and a common Dremel tool with a dental bit will
be used to route out the cavity into which the abalone logo will be set.

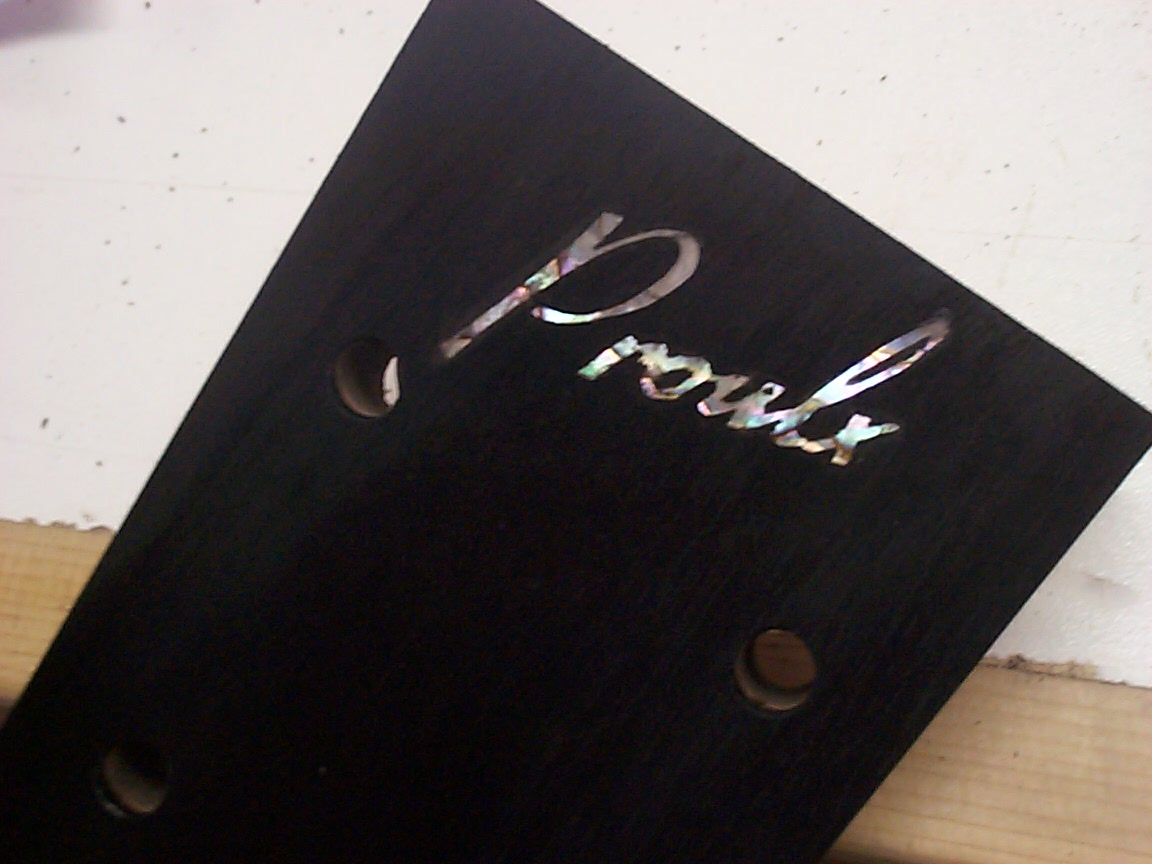

Once set into place, a bit of filler will be used, and everything filed
flush. |
|
|
|
 |
 |
 |
|
 |
 |
|
|
|
|

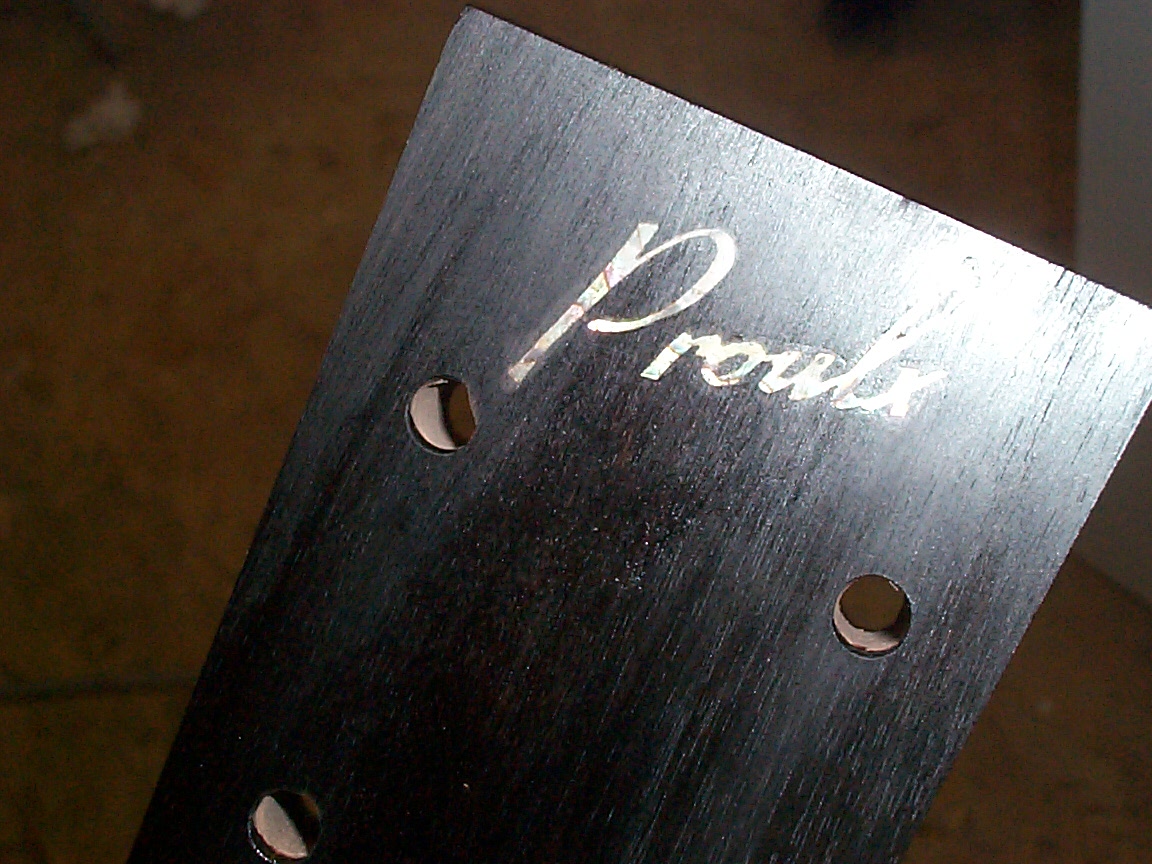

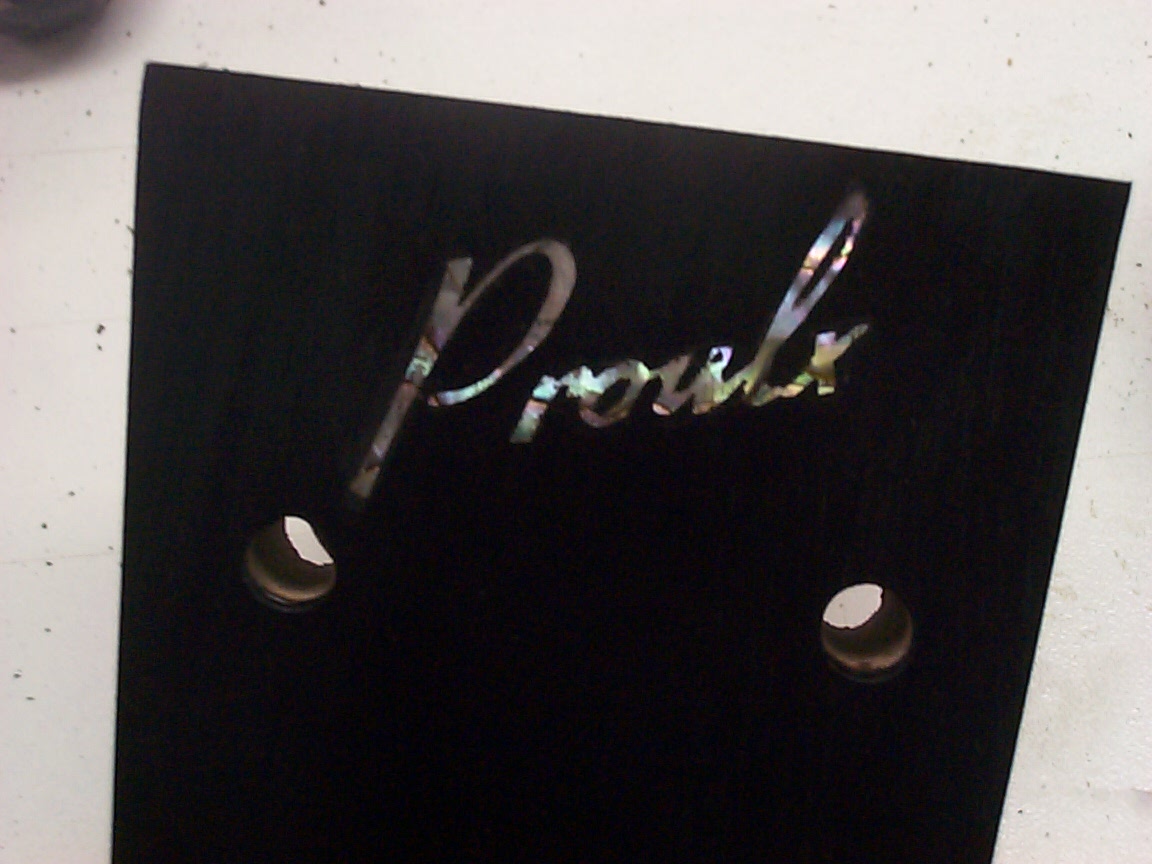

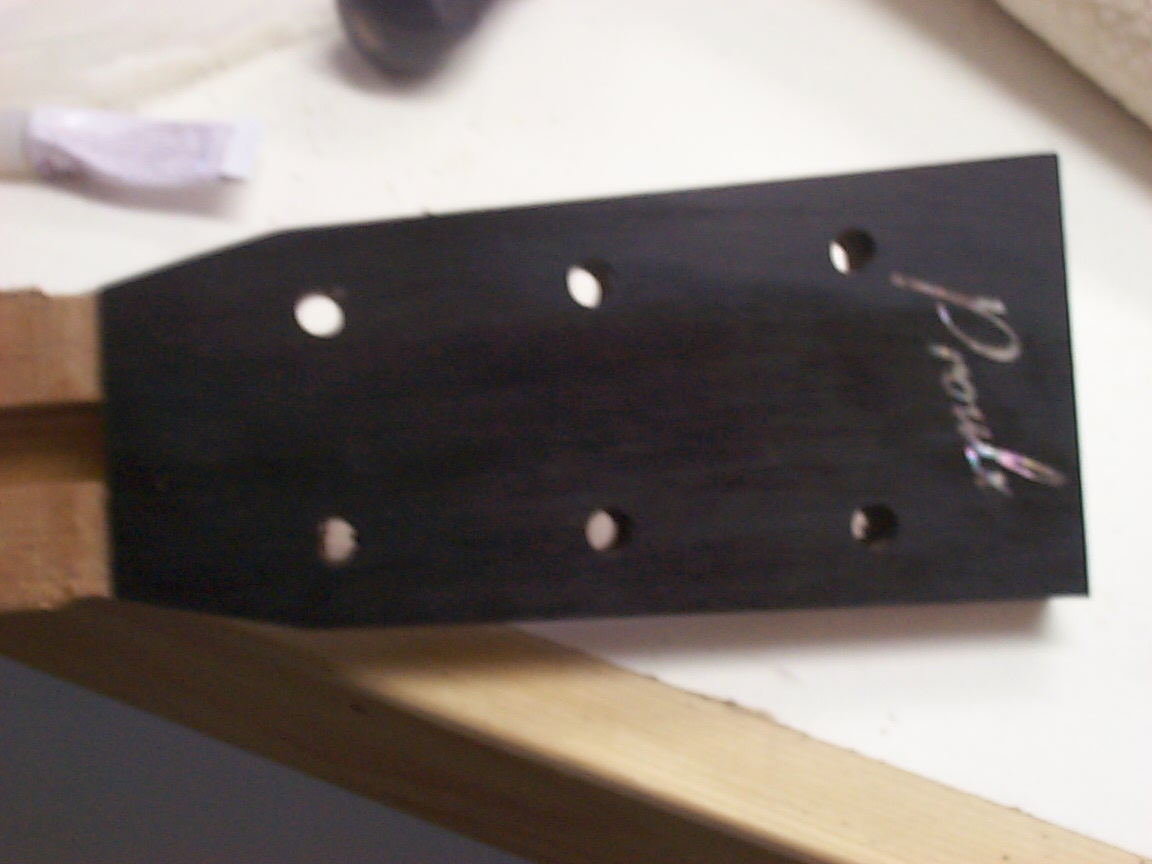

The end result! |
|
|
|
|

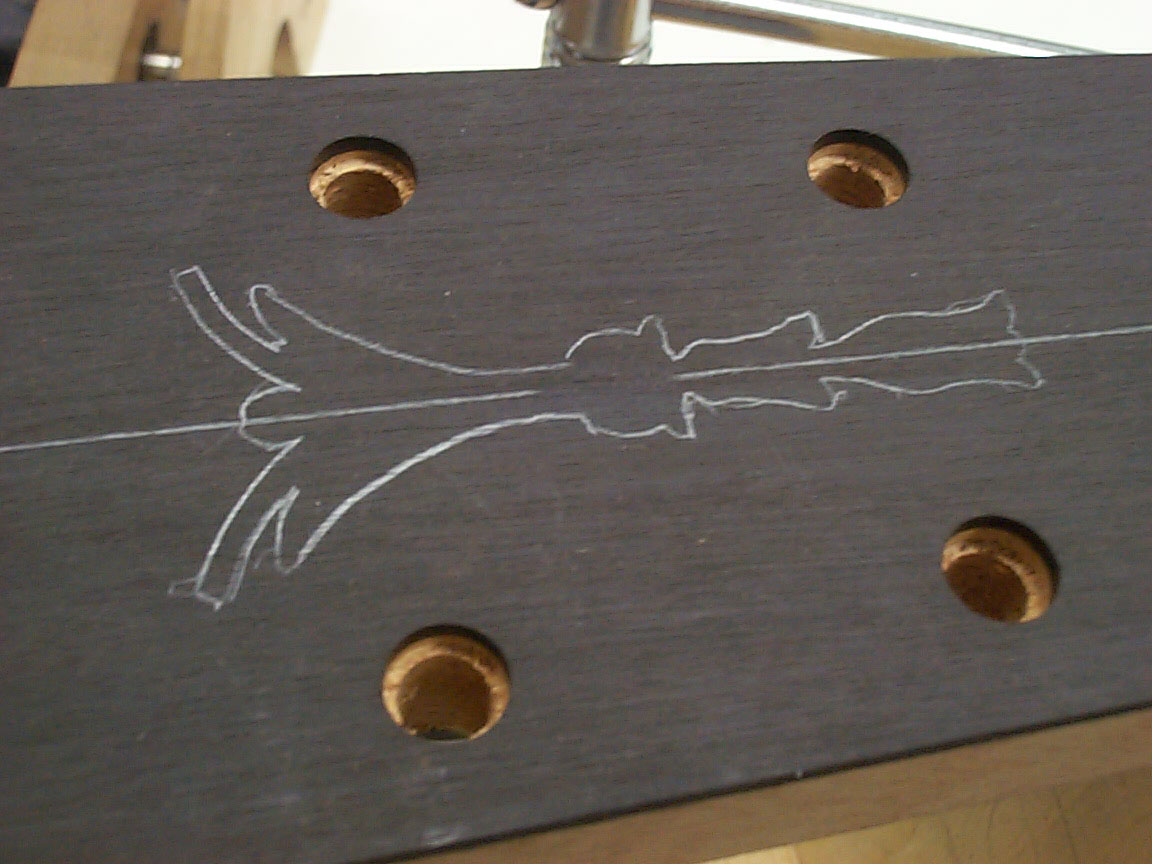

For an optional torch inlay... |
|
|
|
 |
 |
 |
|
 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|

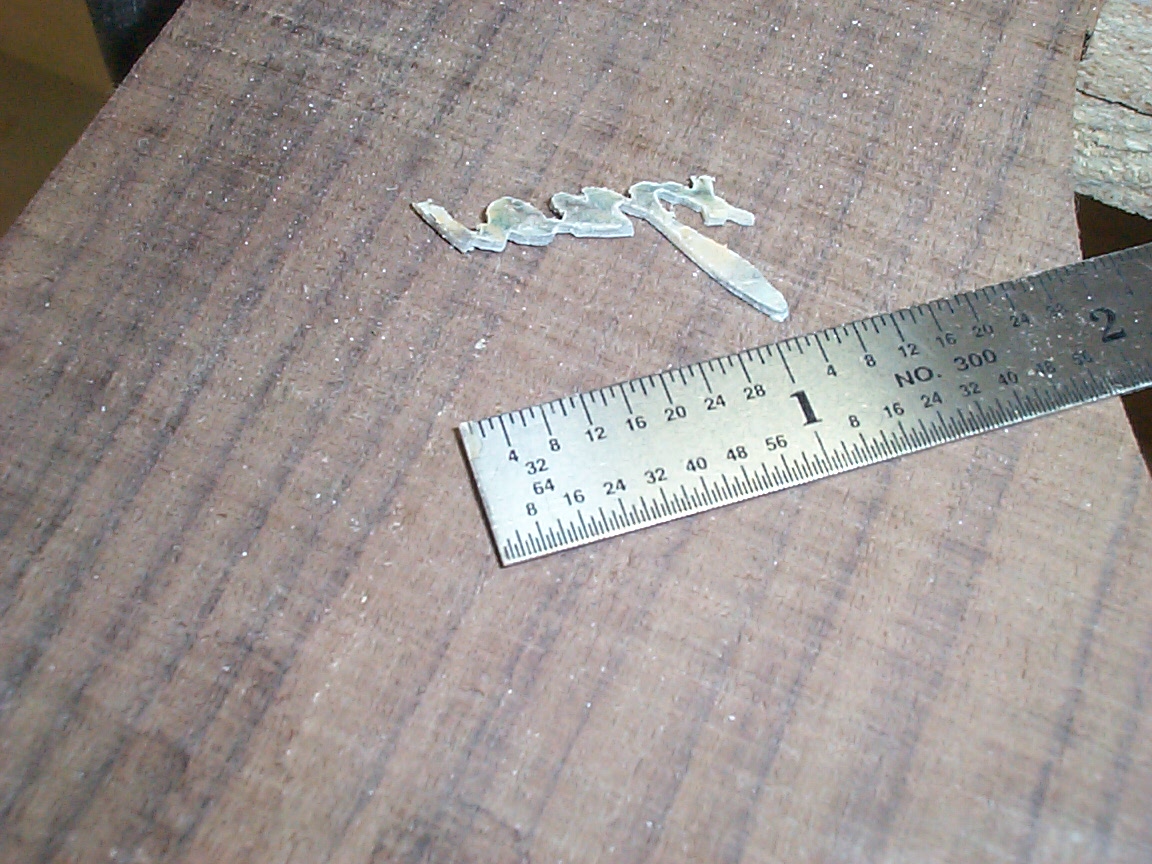

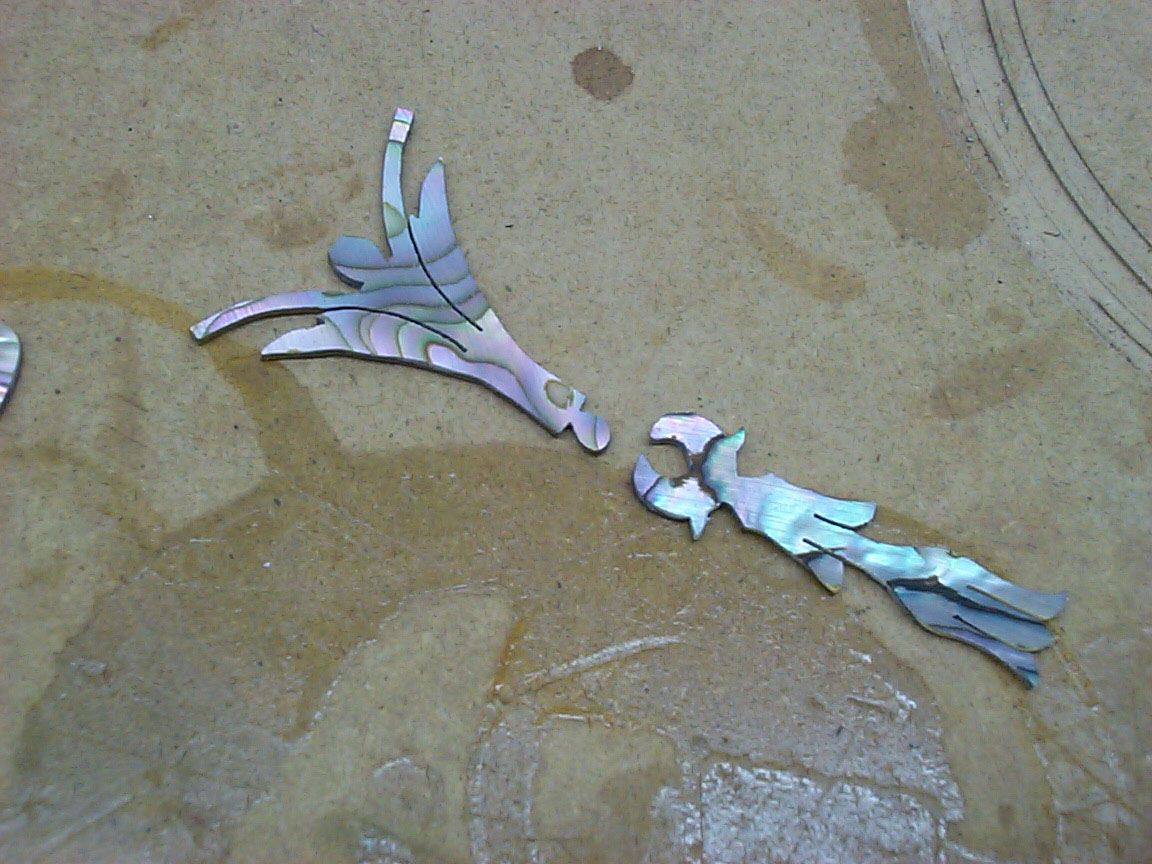

| A torch cut from some very colorful
abalone. |

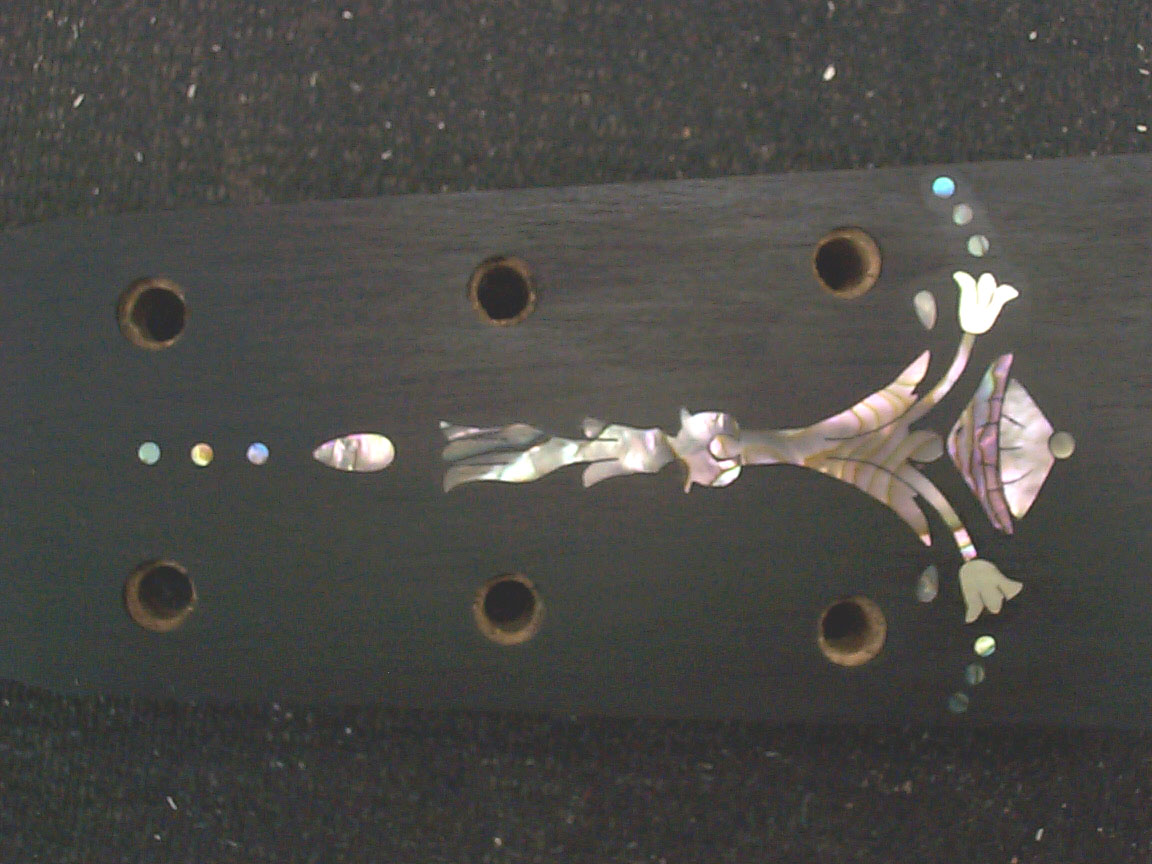

And inlayed into the ebony headplate |

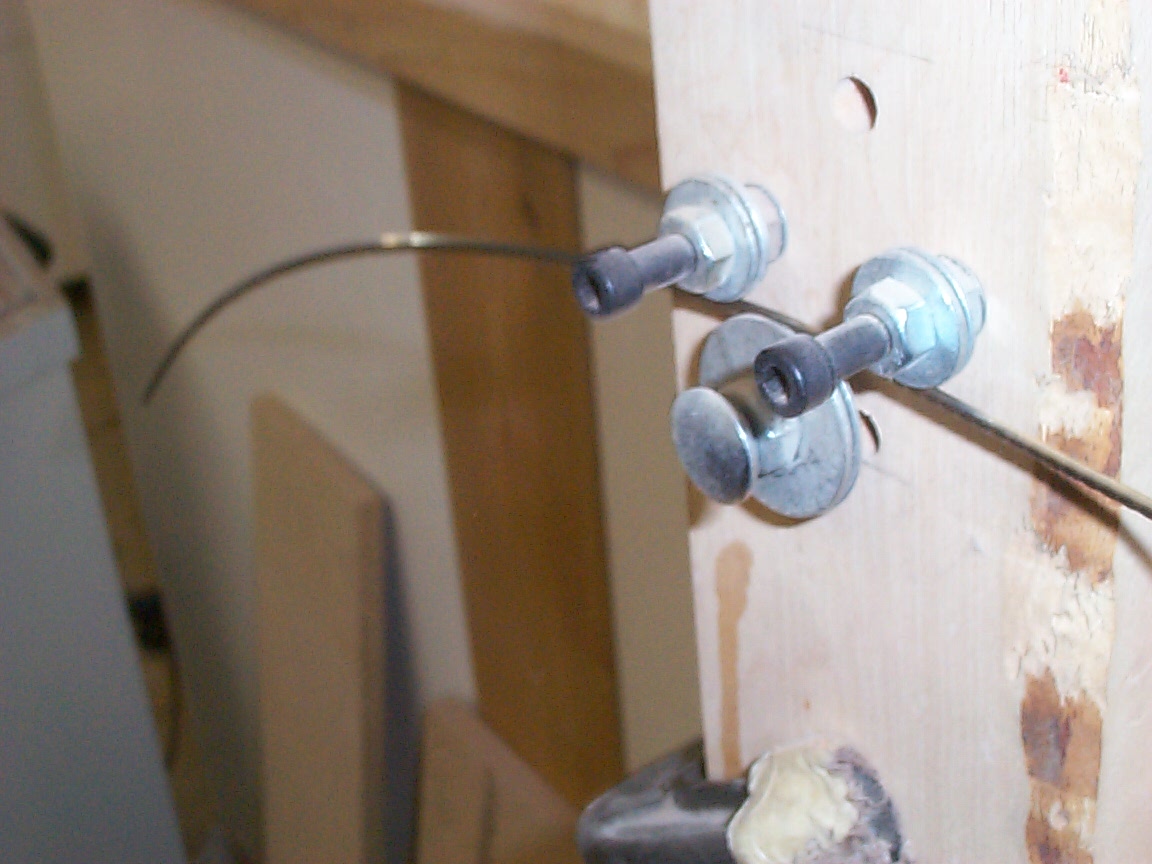

The fret wire comes in straight lengths,
so I made this little jig to put a curve to it. |
|
|

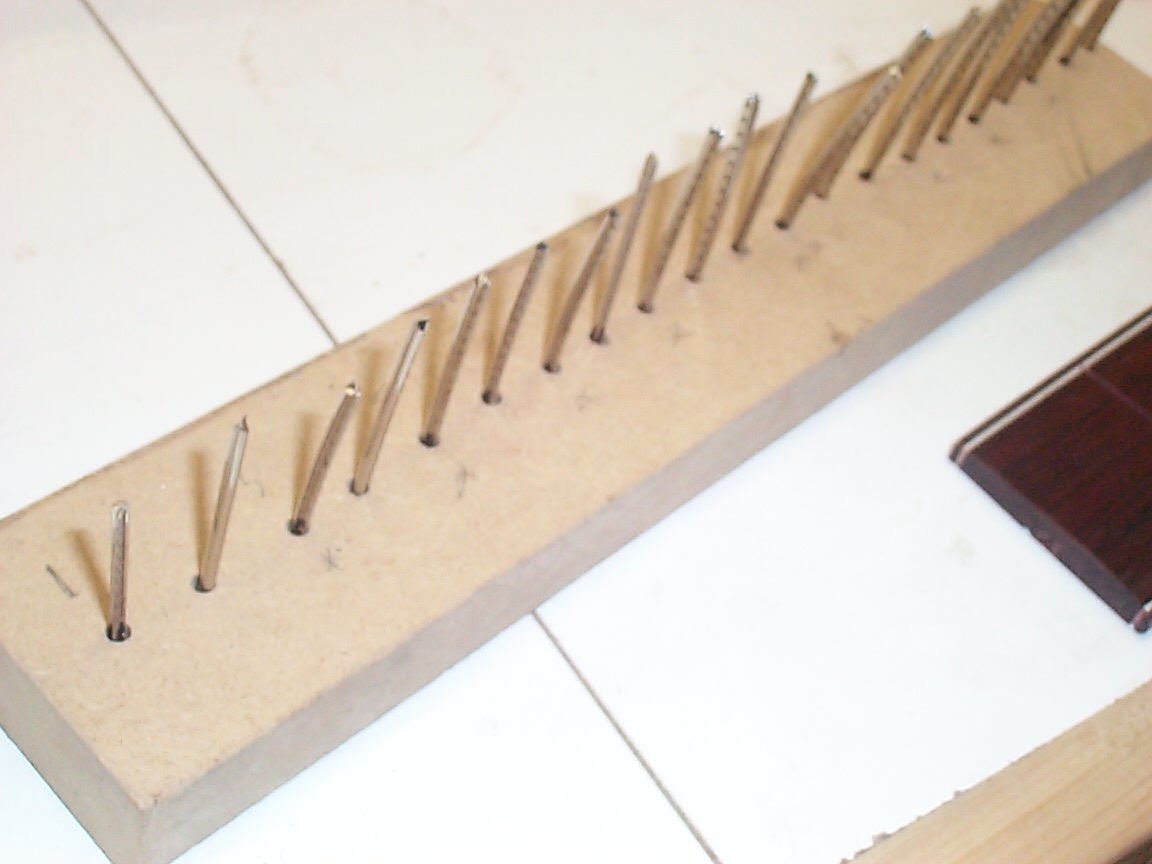

The wire is cut, and kept in order in this
little holder.... |
|
|
|
 |
 |
 |
|
 |
 |
|
|
|

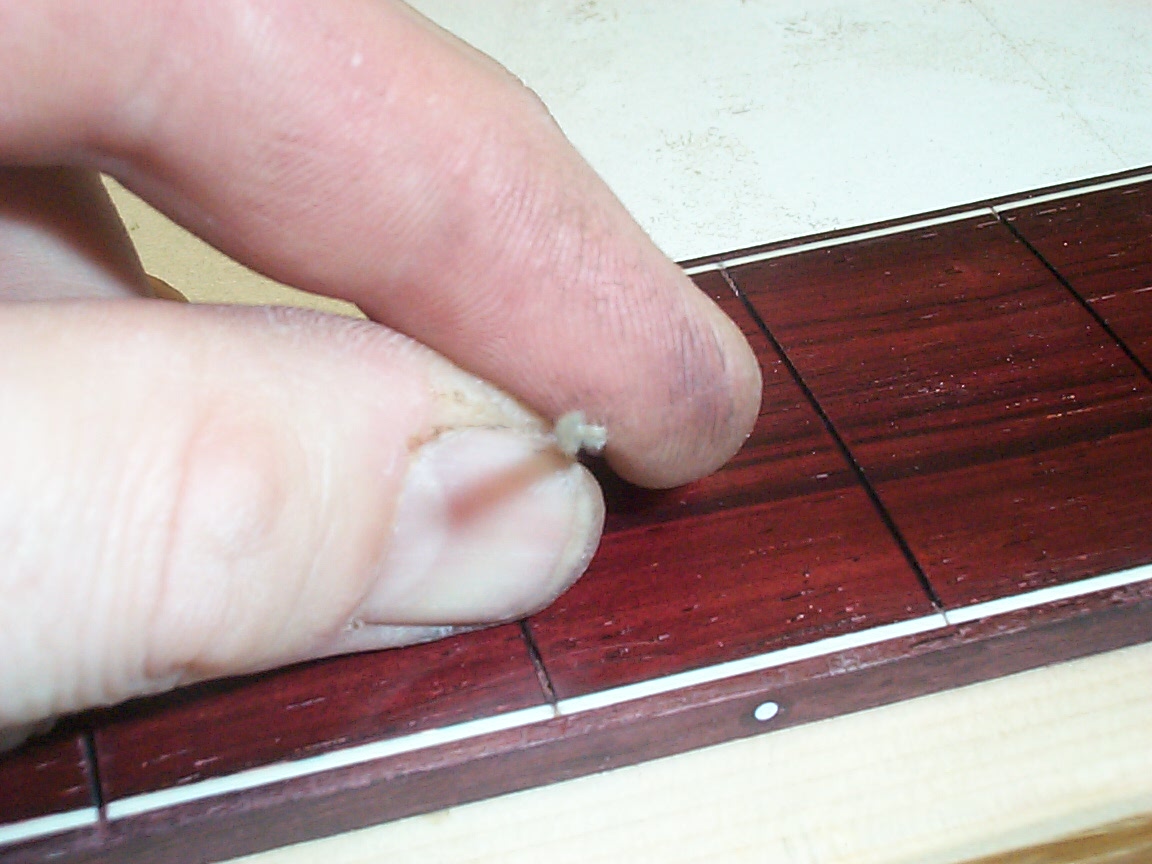

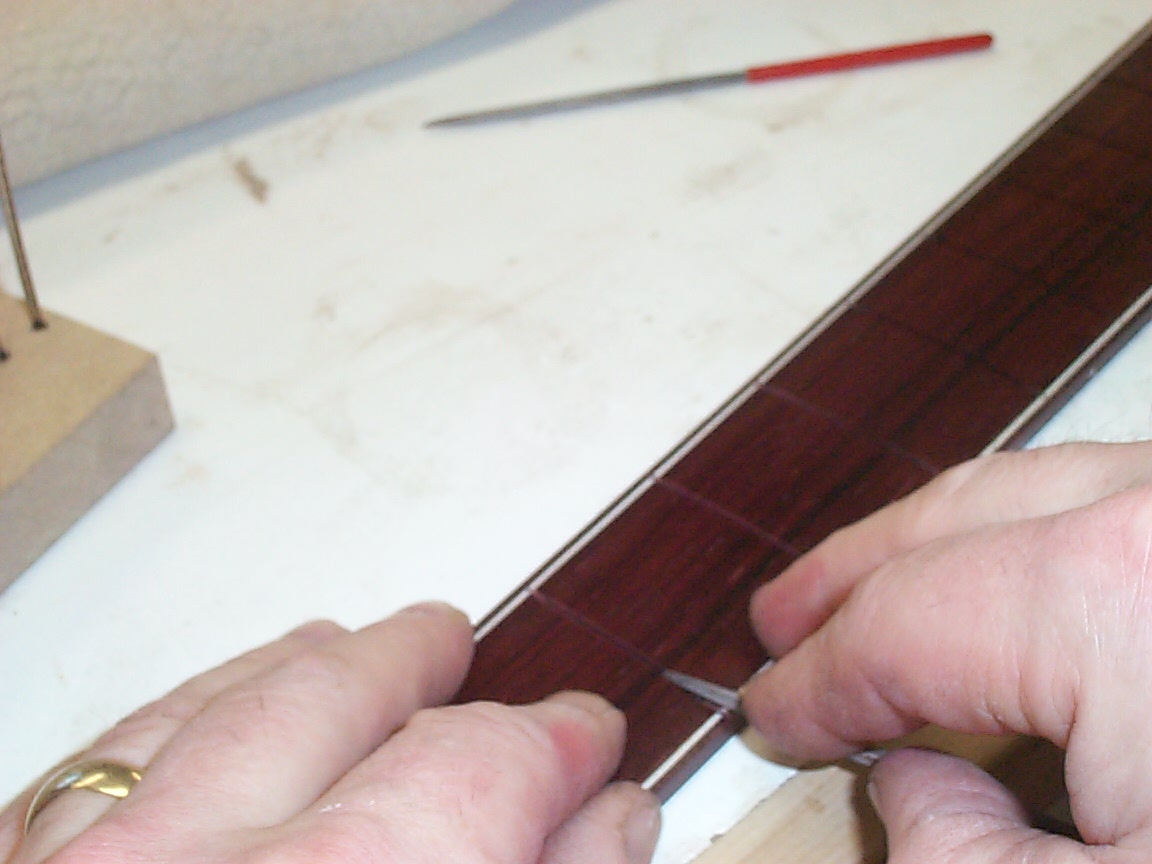

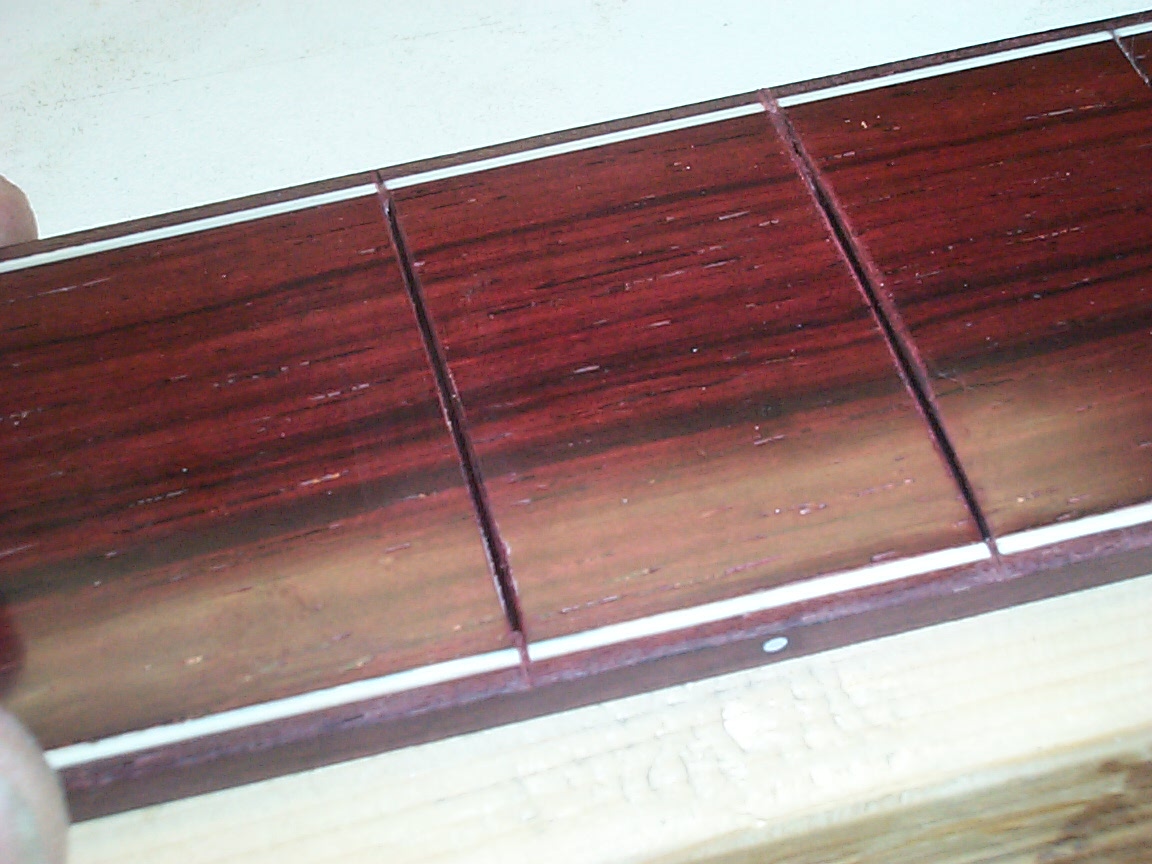

| Because the fret wire isn't a perfect "T"
shape, we need to add a slight chamfer to the fret slots. |
|

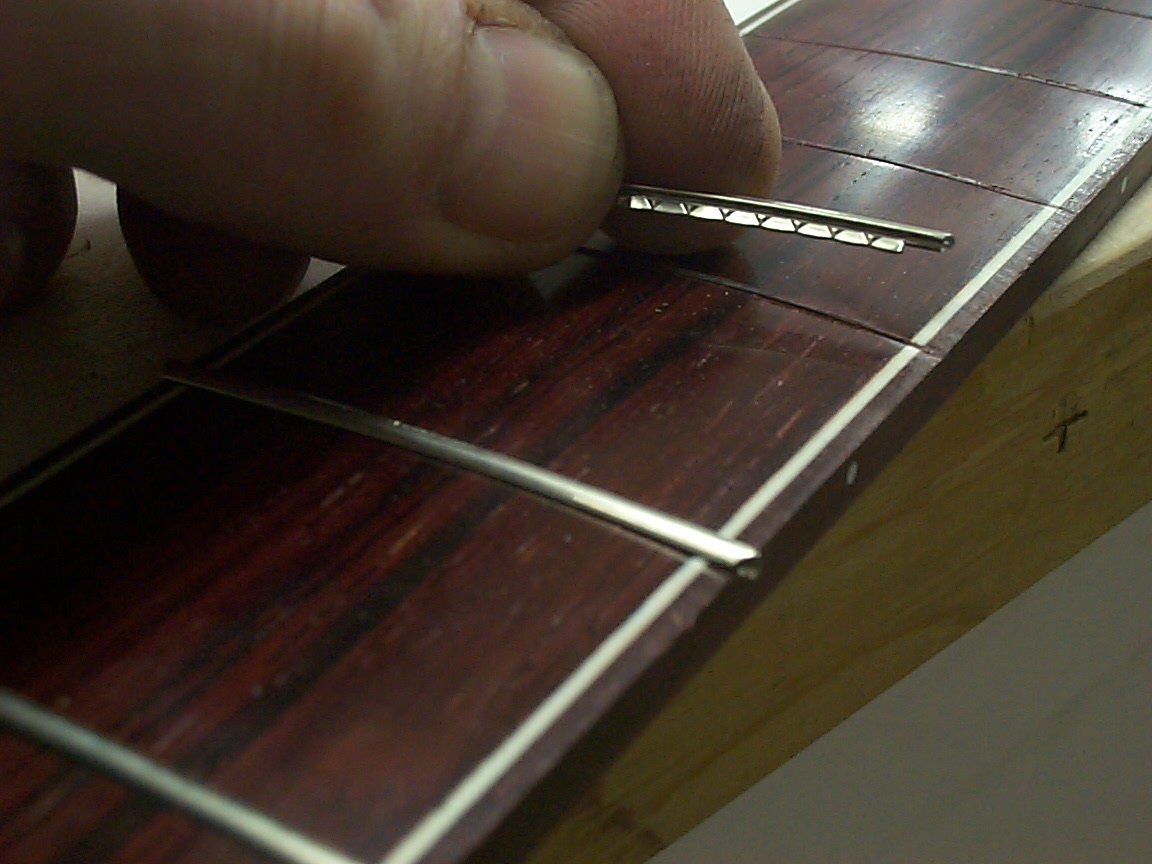

Here, and in the next couple of shots, I'm
trying to show the under cut of the fret tang, that needs to be done to
go over the binding. |
|
|
|
|
|
|
 |
 |
 |
|
 |
 |
|
|
|

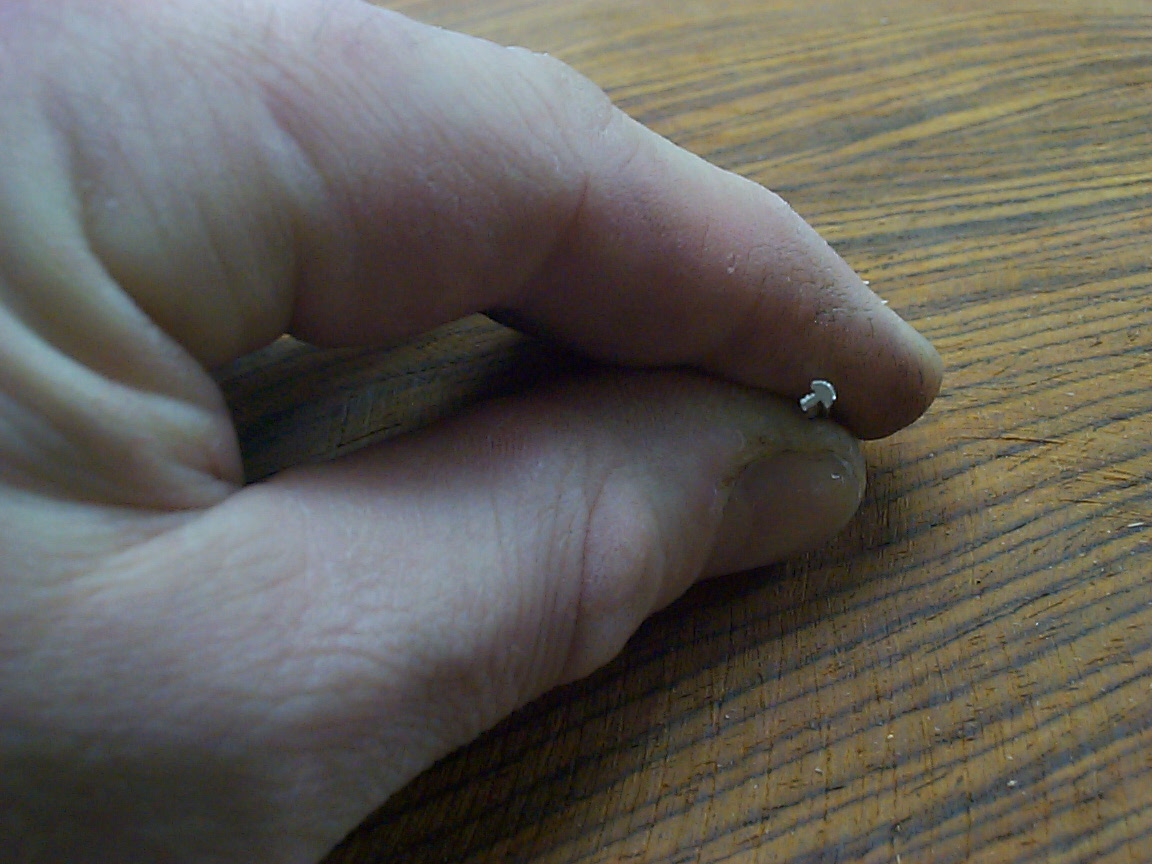

| Ah! Here we go! Now we can finally see the
under cut of the tang..... |

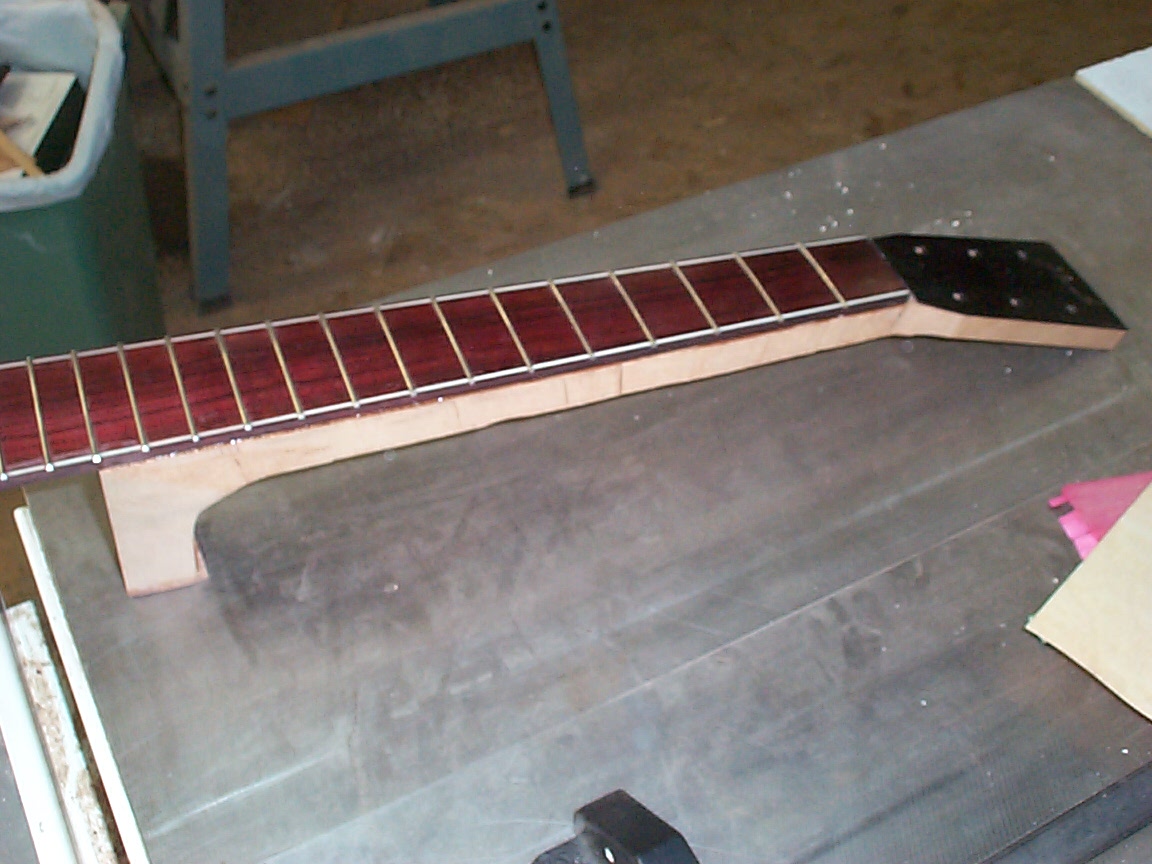

And here we are, fretted and ready for final carving. |
|
|

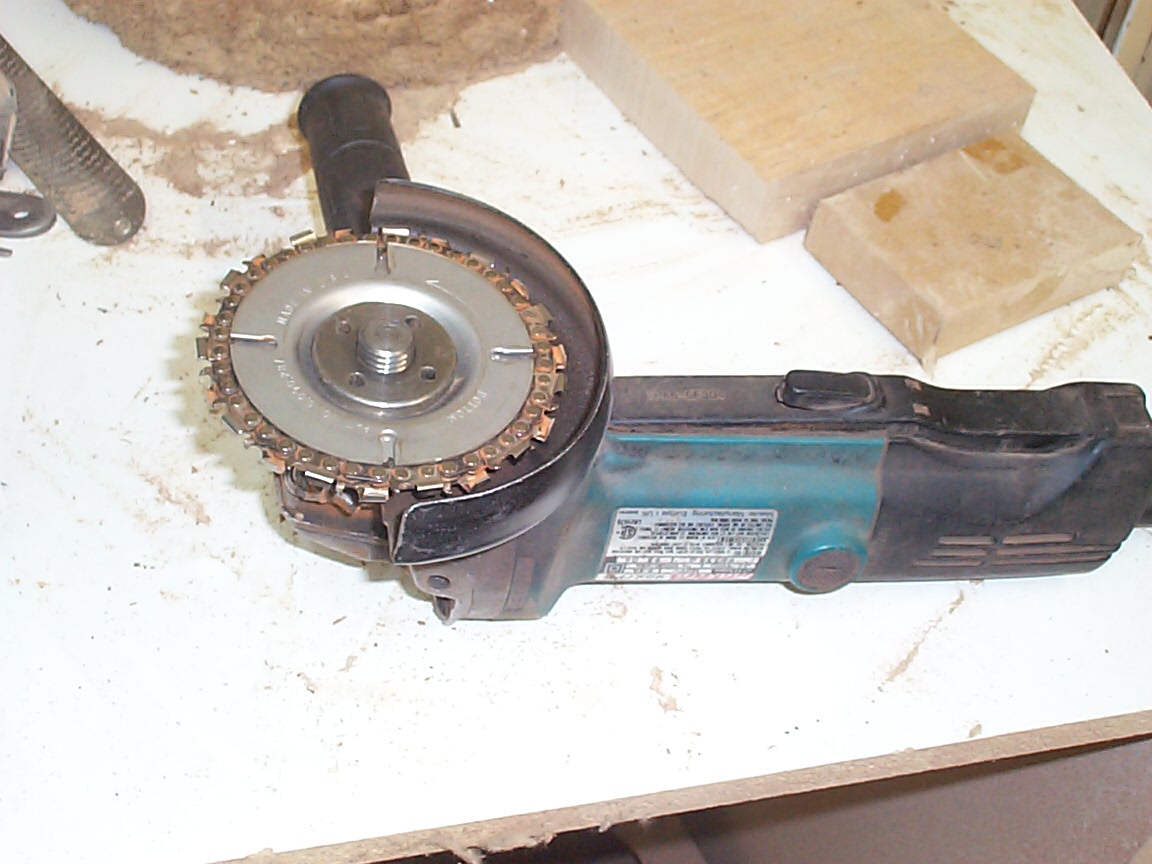

And my tool of choice for the fine,
delicate art of neck carving is..... a chain saw wheel! Also known as a
"Lancelot", this little device is deadly, but it can remove wood at an
astounding rate! |

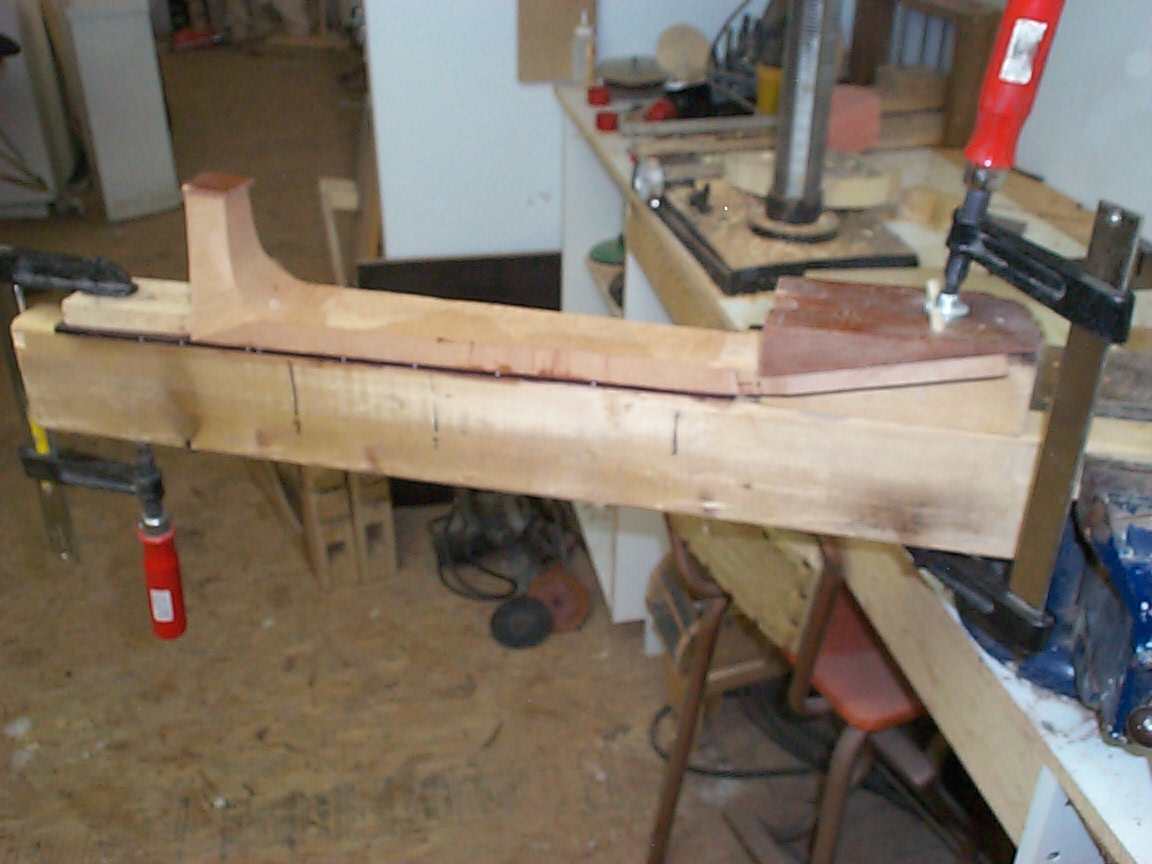

The neck is held in this jigs while
carving..... |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
